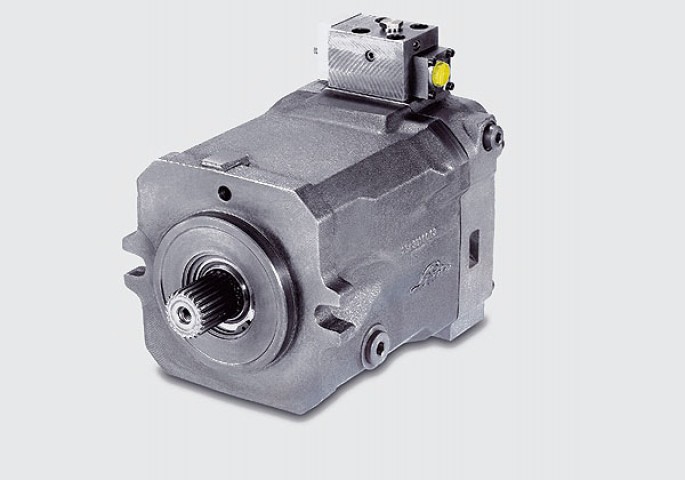

HMR-02

HMR-02

Self-regulating motors for open and closed circuits

  • steady low speed behaviour
  • high starting torque
  • large conversion range
  • PTO through-drive motor
  • compact design
  • high power density
  • high reliability
  • long service life
  • dynamic response

Design characteristics

  • axial piston motor in swash plate design for high pressure open and closed circuit systems
  • optimized starting and low speed behaviour
  • purge valves for circuit and case flushing in closed circuit optional
  • internal system pressure control, no external piping required
  • brake pressure shut off for closed circuit
  • high pressure relief valves available
  • through shaft with free shaft end or with coupling flange
  • SAE high pressure connection ports radial or axial
  • SAE mounting flange with ANSI or SAE spline shaft
  • plug-in version optional
  • speed sensor optional
  • counter balance valve optional

Maximum displacement override

  • pneumatic
  • hydraulic (high and low pressure)
  • electric

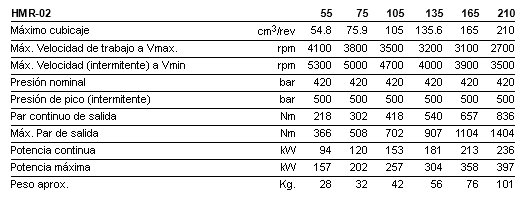

HMR-02 Table
